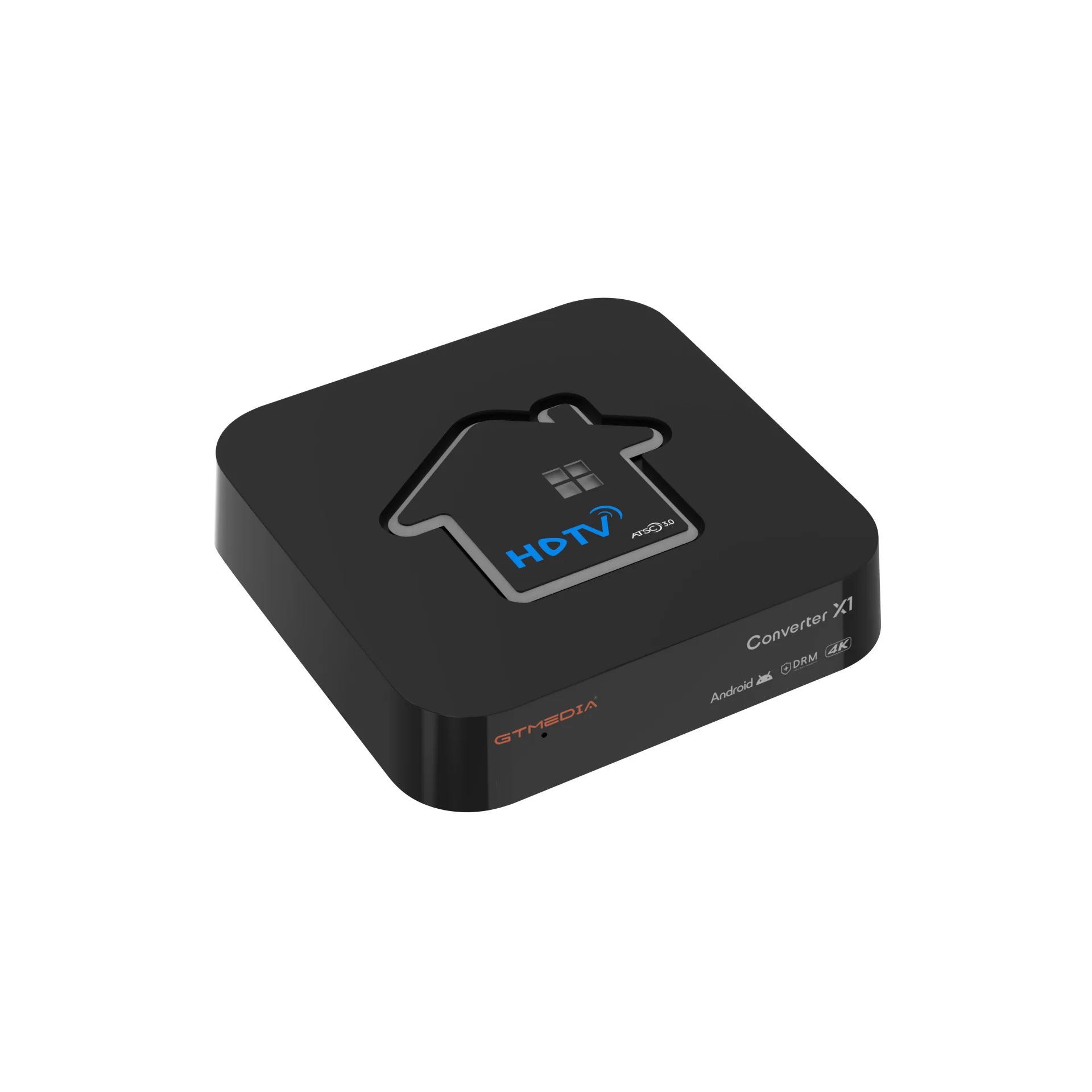

GTMEDIA HDTV Converter X1 H.265 10-bit Android 11 TV BOX Built-in BT5.0 Wifi 2GB RAM+32GB ROM compatible with ATSC3.0 Digital

Highlight

1.Android 11 TV BOX

2.HW UHD H.265/VP9 60fps 10-bit video decoderAudio Dlby AC4.

3. Fully compatible with ATSC3.0/ATSC1.0 digital terrestrial signal，QAM-B (Clear QAM) wired signal

4.Support ATSC3.0 DRMChannel play（Widevine DRM L1）

5.Support DVR recording

6.external USB DVR

7.Amlogic S905Y4-B2GB RAM +32GB ROM

8.Built-inBT 5.0，Wifi 2.4G 5G,802.1.1b/g/n/ac

9.System is GT UI，Customizable interface

10.HDTV player，Gogle Play，YuTube. Prme Video. Dsne+.Netlix.Mracast. Media center. gtstore.AptoideTV.,etc.

11.Technical support website : www.freesat.cn

Note:We reserve the right to change the design and OEM/ODM supported

Hardware

CPU

Amlogic S905Y4-B quad-core 64-bit Arm Cortex-A35

GPU

Processor with Mali-G31 MP2 GPU

RAM

2G DDRIII

ROM

32G EMMC

Video Decode

HW UHD H.265/VP9 60fps 10-bit, 4K AV1 60fps, 4K AV1 60fps 10-bit video decoder; HDR 10, HDR 10+ and HLG video processing

Audio Decode

Supports MP3, AAC,WMA,RM,FLAC,Dolby AC3 EAC3 AC4 Audio Optional,and programmable with 7. 1/5.1 down-mixing

LED Indicator

Power ON :Blue; Standby :Red ; IR LED:Blue

Wifi

Built in 2.4G5G WiFiSupport IEEE 802.1.1b/g/n/ac

BT

Support Bluetooth 5.0

IR

Exit IR for 38KHz,Infra Remote control

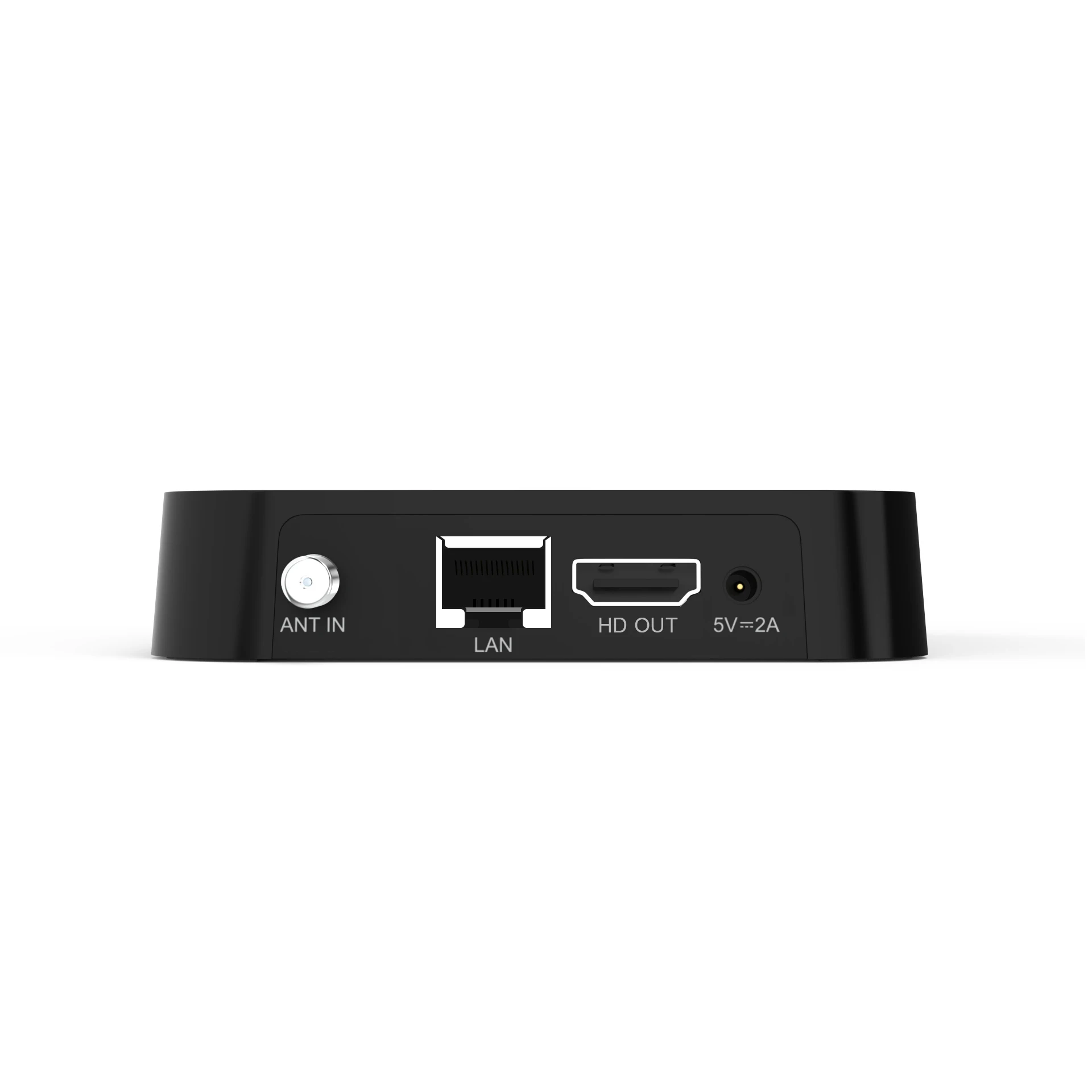

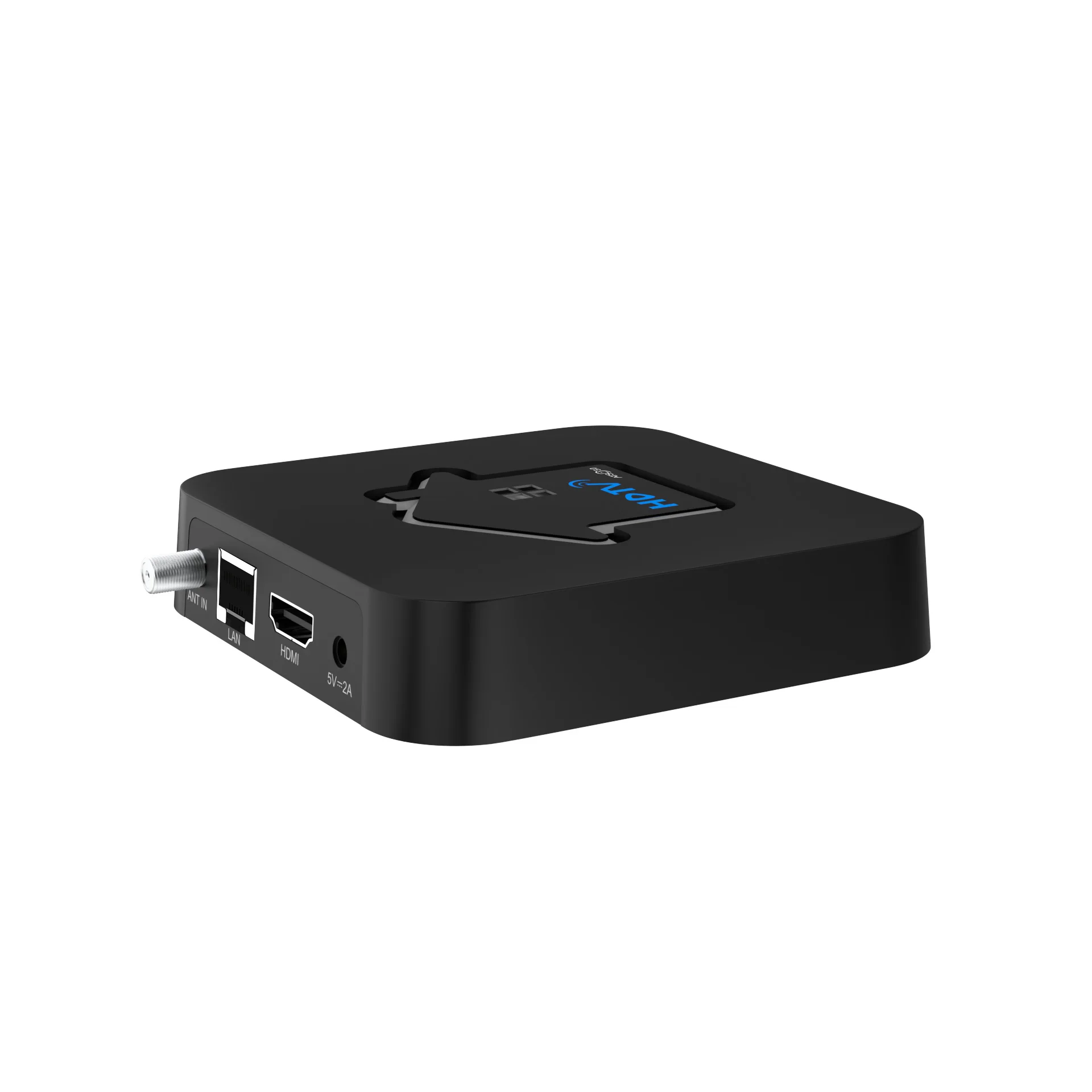

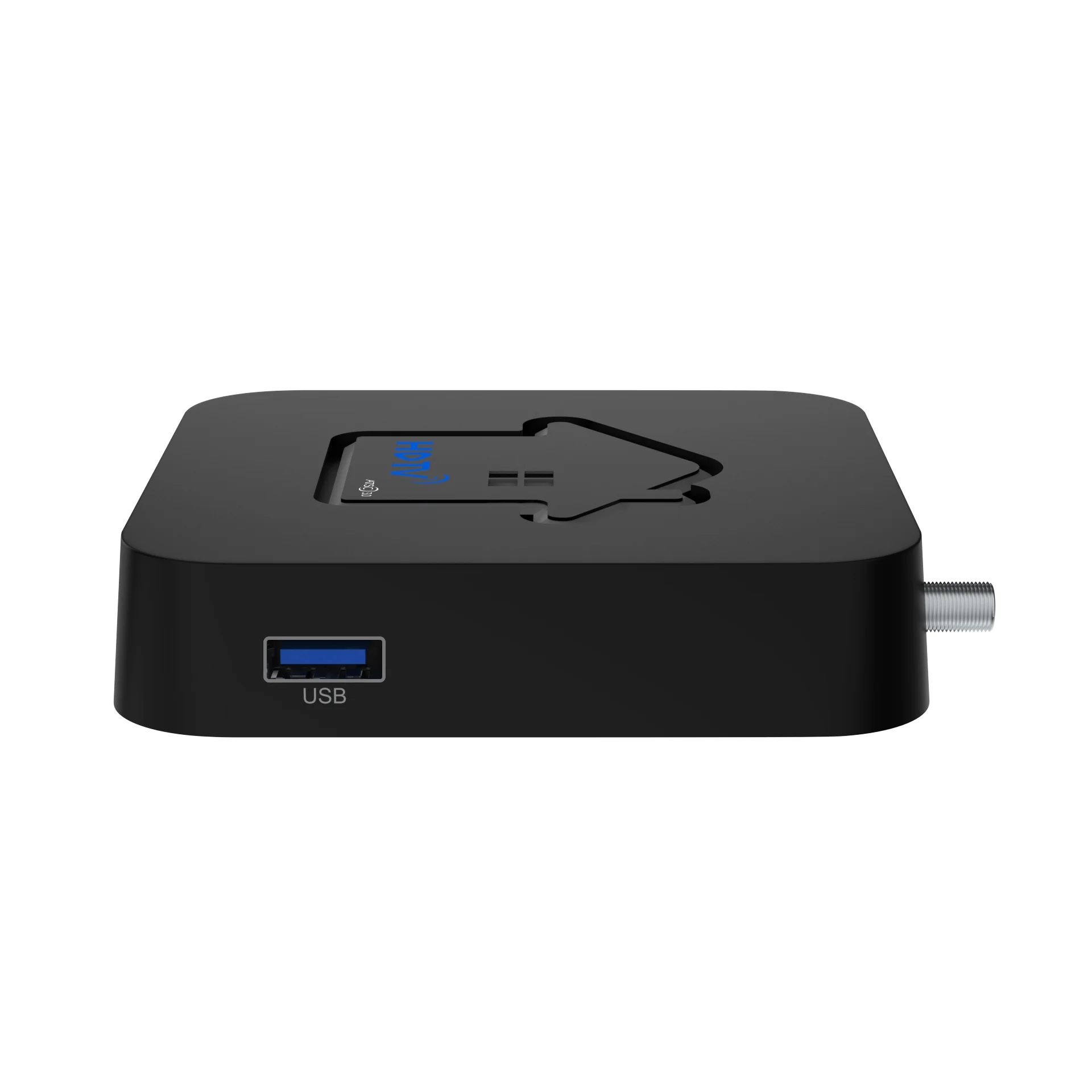

Rear Panel

1*ANT IN( EC-type IEC169-2 Female)

1*HD2.1 (4K@60fps)

1*USB 2.0 HOST

1*RJ45

1*DC IN (DC5V/2A)

QAM-B ​（Clear QAM） ​specifications

Frequency Range

Ch 2---36（57Mhz~~~605Mhz）

Search mode

Full Channel Scan

ATSC-T specifications

Frequency Range

6MHz channel bandwidthsCh 2---36（57Mhz~~~605Mhz）

Country

United States, Mexico, Canada, South Korea,Jamaica,India, Brazil

HDTV Player ​Software Features

Standard

Fully compatible with ATSCdigital TV standard, Clear UHD/HD picture and easy to install and use

Channels Number

20000+ channels TV and Radio programmable

Channel

Recording one channel, can view another channel under the same TP,

DRM Channel

Supports Support ATSC3.0 DRMChannel play

DVR

USB Disk

EPG

Fully support to 7 days Electronic Program Guide(EPG)

Easy Menu

An easy to use Menu System with Introduction&Guide

Channel List

Program + EPG full screen display

Channel Search

Full Channel Scan，Adaptive Channel Scan，Manual Channel Scan

Settings

Hide/Show Channels,Time Settings,Captions,Audio,Restore Settings,lntroduction Setting,About

Broadcast App

Supports ATSC3.0 channel broadcast，Video, photo, news, weather

Subtitle

Closed Captioning (CC)

Time Set

Time set by Network or Broadcast

SoftUpgrade

Software upgrades through online

Sortware Features

O.S.

Android 11 TV BOX

3D Graphics

OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0 support

5D Graphics Processor

Supports multiple video formats 4:2:0, 4:2:2 and 4:4:4 and multiple pixel

Video/Picture Decoding

-AV1 MP-10@L5.1 up to 4Kx2K@60fps ​-VP9 Profile-2 up to 4Kx2K@6Ofps ​-H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps ​-AVS2-P2 Profile up to 4Kx2K@6Ofps ​-H.264 AVC HP@L5.1 up to 4Kx2K@30fps ​-MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) ​-WMV/VC-1 SP/MP/AP up to 1080P@60fps ​-AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps ​-MPEG-2 MP/HL up to 1080P@6Ofps (ISO-13818) ​-MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) ​-Multiple language and multiple format sub-title video support ​-MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) ​-Supports JPEG thumbnail, scaling, rotation and transition effects ​-Supports *.mkv,*.wmv,* .mpg, *.mpeg, *.dat, *.avi, * .mov; *.iso, *.mp4, *.m and *.jpg file formats

OSD Language

English/French/German/Spanish/Italian etc. 24 languages

OSD Color

32-bits OSD with anti-flickering

Easy Menu

Plug and Play installation, with an easy to use Menu System

DLNA

DLNA files sharing

Network Functions

HDTV player，Google Play，YouTube. Prime Video. Disney+.Netflix.Miracast. Media center. gtstore.AptoideTV.,etc.

Other feature

Free Internet searching,thousands of android applications,many kinds of games,etc.

SoftUpgrade

Software upgrades through USB port or OTA.

Time Set

Time set by GMT offset automatic and manual,Summer Time support

Packing

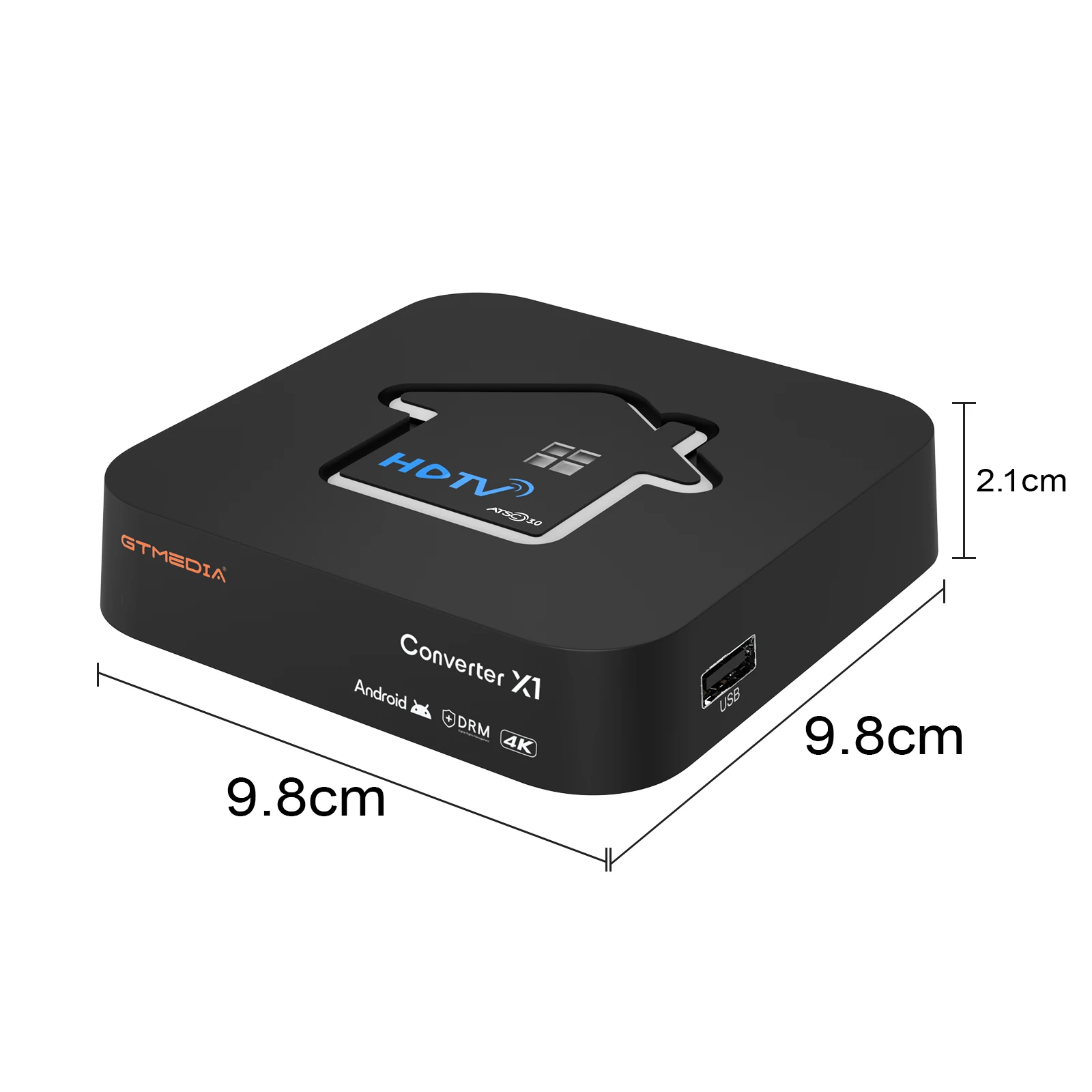

Product Dimension

100*100*20MM（L*W*H）

Packaged Size

200*132*54MM

Carton Size

415*290*288MM(20pcs/ctn)

Unit Weight

0.525 Kg with gift box

Carton Qty&Weight

20 pcs/Carton,11.5kgs

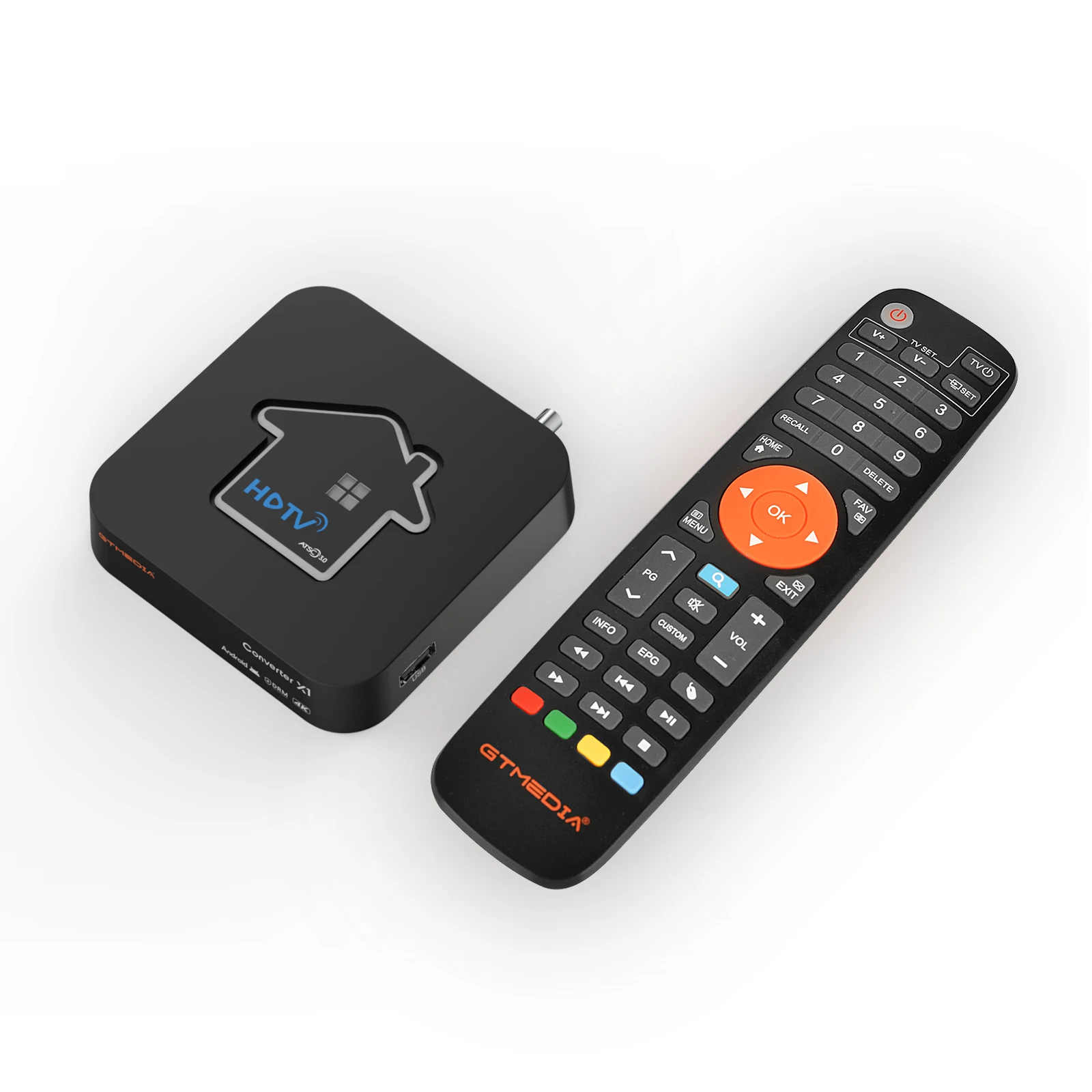

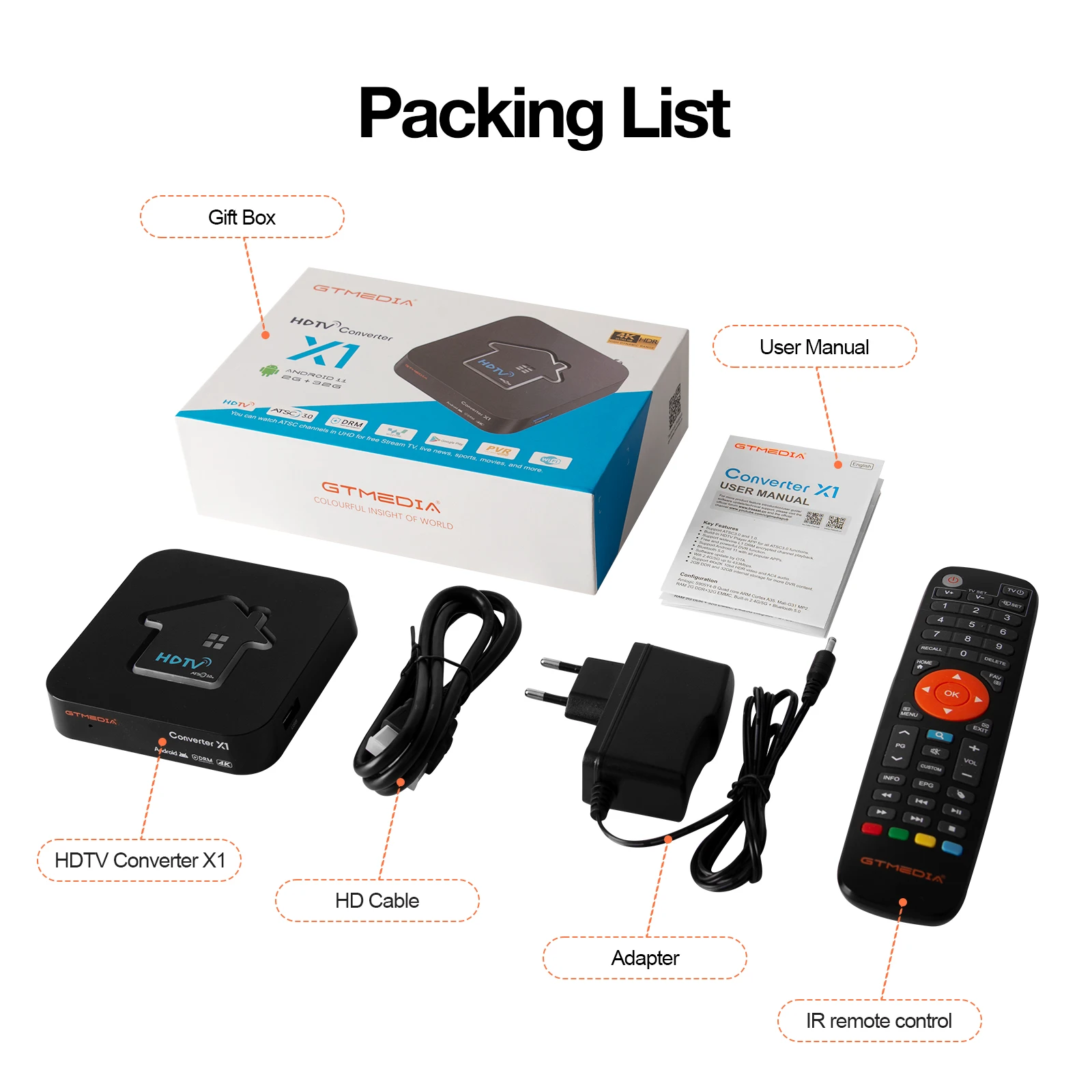

Accessories

Gift Box, Adapter, IR remote control, HD Cable, User Manual

Physicals

Power Supply

AC IN100-250V, DC 5V/2000mAh

Power Consumption

6W in operation ​≦1 W Standby Power Mode

Temperature

Operation 0～+45℃; Storage -10~+60℃

Humidity

20~90%, non-condensed
