Android 5.1 OS
Android 5.1 OS, rapid and stable, with a redesigned user interface built around a design language known as "Material design", avails the access to over 800,000 apps including Facebook, Youtube, Picasa and more.
Amlogic S905
Amlogic S905, a high performing CPU running at 2,000.00 MHz Max., has 4 core(s) which results in extremely efficient multi-tasking in comparison with dual core processors.
Mali-450
Penta-core ARM Mali-450, a separate graphics processor dedicated to accelerate the creation of images to be outputted to a display, is structured around processing large blocks of data in parallel.
4K Resolution
The latest in a line of broadcast and media resolutions, 4K is due to replace 1080p as the highest-resolution signal available for in-home movies and television. With a minimum resolution of 3,840 pixels wide and 2,160 pixels high, making it the equivalent to two 1080p screens in height and two in length.
Gigabit LAN
Gigabit LAN provides a data rate of 1 billion bits per second.
2GB DDR3, 16GB eMMC
It boasts DDR3 2GB RAM, and eMMC 16GB Flash, advantageous in performance, security and reliability, ascribing to the eMMC memory, ultimately delivering a richer end-user experience.
2.4/5GHz WIFI 802.11 b/g/n/ac
European standard EN 301 893 covers 5.15–5.725 GHz operation, and v1.8.1 is in force.Mandatory 80 MHz channel bandwidth for stations (vs. 40 MHz maximum in 802.11n), 160 MHz available optionally.Support for up to eight spatial streams (vs. four in 802.11n).The specification has multi-station throughput of at least 1 gigabit per second and single-link throughput of at least 500 megabits per second (500 Mbit/s).
Bluetooth 4.1
New features of this specification include:
- Mobile Wireless Service Coexistence Signaling
- Train Nudging and Generalized Interlaced Scanning
- Low Duty Cycle Directed Advertising
- L2CAP Connection Oriented and Dedicated Channels with Credit Based Flow Control
- Dual Mode and Topology
- LE Link Layer Topology
- 802.11n PAL
- Audio Architecture Updates for Wide Band Speech
- Fast Data Advertising Interval
General |
|
Model |
MINIX NEO U1 |
Quantity |
1 Piece |
Color |
black |
Remote |
IR Remote |
HardWare & System |
|
Android OS |
Android 5.1 Lollipop |
CPU |
Amlogic S905 Cortex-A53 64bit quad-core 2.0GHz |
GPU |
Penta-core Arm Mali-450 750MHz |
DDR |
2G DDR3 |
FLASH |
16G |
Extended Storage |
TF CARD Support 1~32GB |
Ethernet |
10/100/1000Mbps |
WIFI |
2.4GHz/5GHz IEEE 802.11 n/b/g/ac |
Bluetooth |
Bluetooth 4.1 |

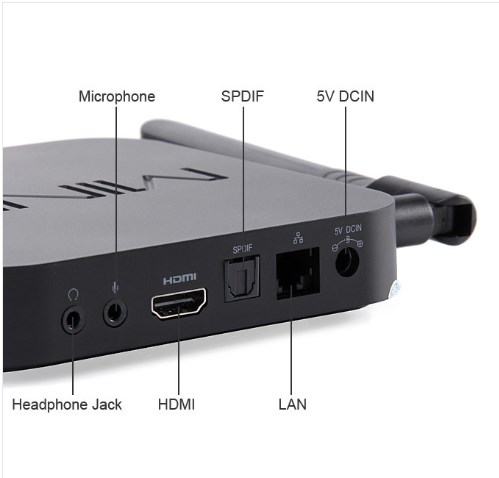

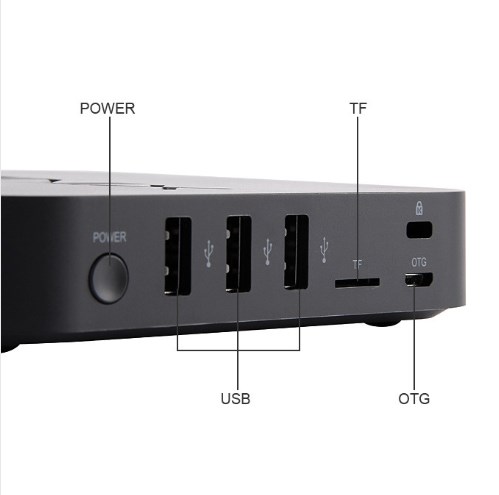

Interface |
|
Power Supply |
1 * Power DC Adapter (5V/3A) |
USB HOST |
3 * USB2.0 |
USB OTG |
1 * OTG |
HDMI |
1 * HDMI 2.0 |
SPDIF |
1 * SPDIF |
TF/SD |
1 * TF CARD Support 1~32GB |
RJ45 |
1 * RJ45 LAN Ethernet 10M/100M/1000M |
Decoder & MediaPlay |
|
Video Decoder |
VP9-10 Profile-2 up to 4Kx2K@60fps |
H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps |
H.264 AVC HP@L5.1 up to 4Kx2K@30fps |
H.264 MVC up to 1080P @60fps |
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) |
WMV/VC-1 SP/MP/AP up to 1080P@60fps |
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps |
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) |
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) |
RealVideo 8/9/10 up to 1080P@60fps |
Audio Decoder |
Audio Container:supports MP3 / WMA / AAC / WAV / OGG / AC3 / DDP / TrueHD / DTS / DTS / HD /FLAC / APE and programmable with 5.1 down-mixing Audio Output:HDMI/SPDIF Data Output |
Media format |
Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm |
Photo format |
JPEG / BMP / GIF / PNG / TIFF |
Subtitle |
Multiple language and multiple format sub-title Audio support |
Display |
4K*2K@60 max |
Other Features |
|
Other Functions |

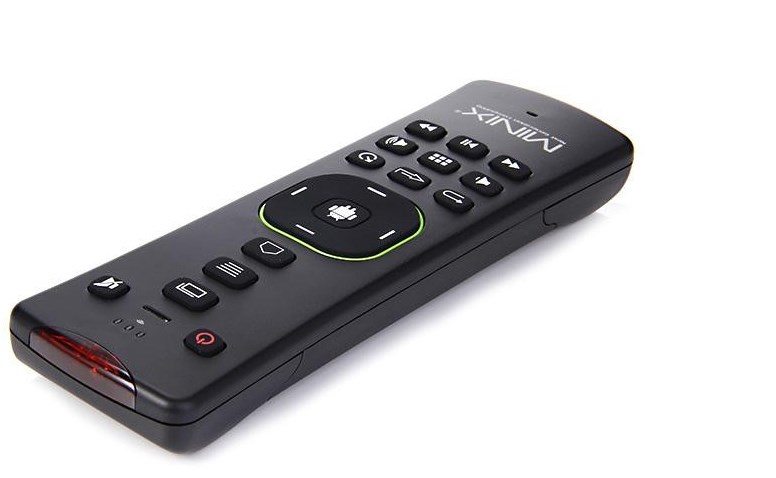

IR Remote |
LED Indicator Power ON :blue; Standby :Red |
Mould Private tooling |
Support most external 3G USB dongle |
WiFi Hotpoint Support |
Mouse/ Keyboard: Support 2.4G wireless mouse and keyboard via 2.4G USB dongle |
KODI DLNA AirPlay Google TV Remote LAN Miracast 3D moive Support |
DRM Optional: Microsoft Playready,Verimatrix ,Google Widevine |
|
Appliactions |
Browse all video websites online, support Netflix,Hulu,Flicker,Picasa,Youtube,Twitter ,Facebook,etc |
Apps: Apps download freely form Android market, Amazon App store etc |
Medium Local Media playback, support HDD, U disck ,SD card |
Talk online Support SKYPE video call , facebook,twitter,Netflix,Youtube, etc |
Others: Email,Office suit etc |

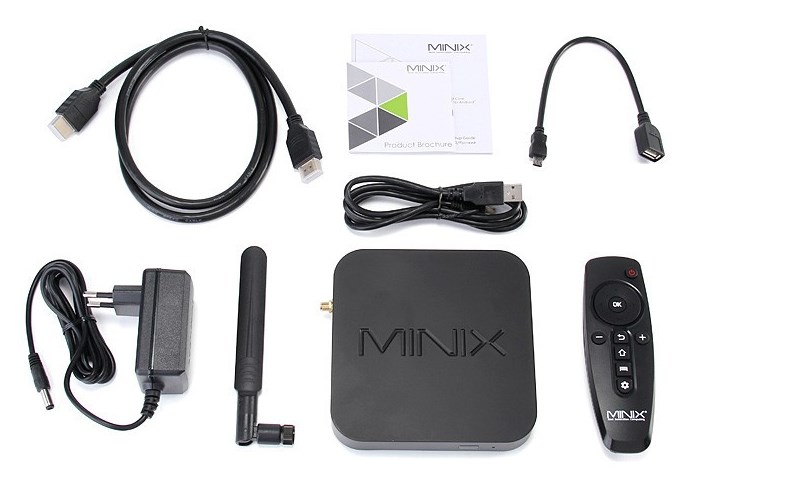

1 * MINIX NEO U1 |
1 * Remote controllor |
1 * HDMI cable |
1 * Power adapter |
1 * User Manual |
Size
|
12.8*12.8*3cm |
Weight |
0.45kg |
